Water Spray Truck 336hp Sinotruck Howo Used 20m3 Water Tank Truck
Water Tank Truck Description:
SINOTRUK HOWO Water tank truck is widely used in city landscaping, road or mining site dusty restrain and so on.
Self suction height: less than or equal to 7m, sprinkler width: is equal to or more than 20m, maximum range:
greater than or equal to 28m; adjusting the pillars, the range is more than or equal to 28m;
Also can be adjusted into a mist, a range of equal to or more than 5m. Before the spray sprinkle, is arranged
in front of the duck shaped nozzle or round blunt mouth, mounted behind the open sprinkler nozzle or shower
nozzle of cylinder, at the back of the work platform, equipped with water cannons.
Working principle is truck engine driven gearbox, gearbox mounted power take-off drive sprinkler pumps,
sprinkler pump produces the main driving force, inside the tank of liquid through the pipe to spray out.
USED WATER TANKER TRUCK SPECIFICATIONS:
| Truck Model | ZZ1257N4347A1 | | Truck Brand | SINOTRUK –HOWO | | Driving Style | Left Hand Driving | | Tank body volume | 20M3 | | Approaching angle/Departure angle(°) | 19/26 | | Overhang(front/rear) (mm) | 1500/1739 | | Wheel base (mm) | 4350+1350(mm) | | Max speed(km/h) | 75 | | Maximum gradeability (%) | 40 | | Minimum ground clearance(mm) | 314 | | Minimum turning circle (m) | 20 | | Curb weight(kg) | 12290 | | Loading Weight(kg) | 25000 | | Fuel tanker capacity(L) | 300 | | Fuel consumption(L/km) | 28L/100 km | | Clutch | Single-plate dry clutch Φ430mm | | Engine Model (Steyr technology, made in China) | Fuel type | Diesel | | | Horse Power, max(kw/rpm) | 336HP | | | Emission | EURO II | | | Model | WD engine 4 Stroke Direct Injection Diesel | | | Bore | 126mm | | | Stroke | 130mm | | | Compression ratio | 29.8hp/l | | | Specific fuel consumption | 195g/kwh | | Transmission | Model | HW19710 | | Brake system | Service brake | Dual circuit compressed air brake | | | Parking brake | spring energy, compressed air operating on rear wheels | | | Auxiliary brake | Engine exhaust brake | | Steering system | Model | ZF8098 Hydraulic Steering with power assistance. | | Front axle | HF7, Steering with double T-cross section beam | | Rear axle | ST16, Pressed axle housing, central double reduction with differential locks between axles and wheels REAR AXLE RATIO: 5.73 | | Color | Optional (White ,Red ,yellow ) | | Tyre | 295/80R22.5 x 11pcs (with one spare tyre) | | Ground Clearance | Ground Clearance of front spray nozzle: 470mm; | | Electrical system | Battery | 2X12V/165Ah | | | Alternator | 28V-1500kw | | | Starter | 7.5Kw/24V | | Cab | HW76, single sleeper with air conditioner all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |
Bulk Ship Ro-Ro Ship Flat Rack
After Refurbishment:
Product Tags:
|
|

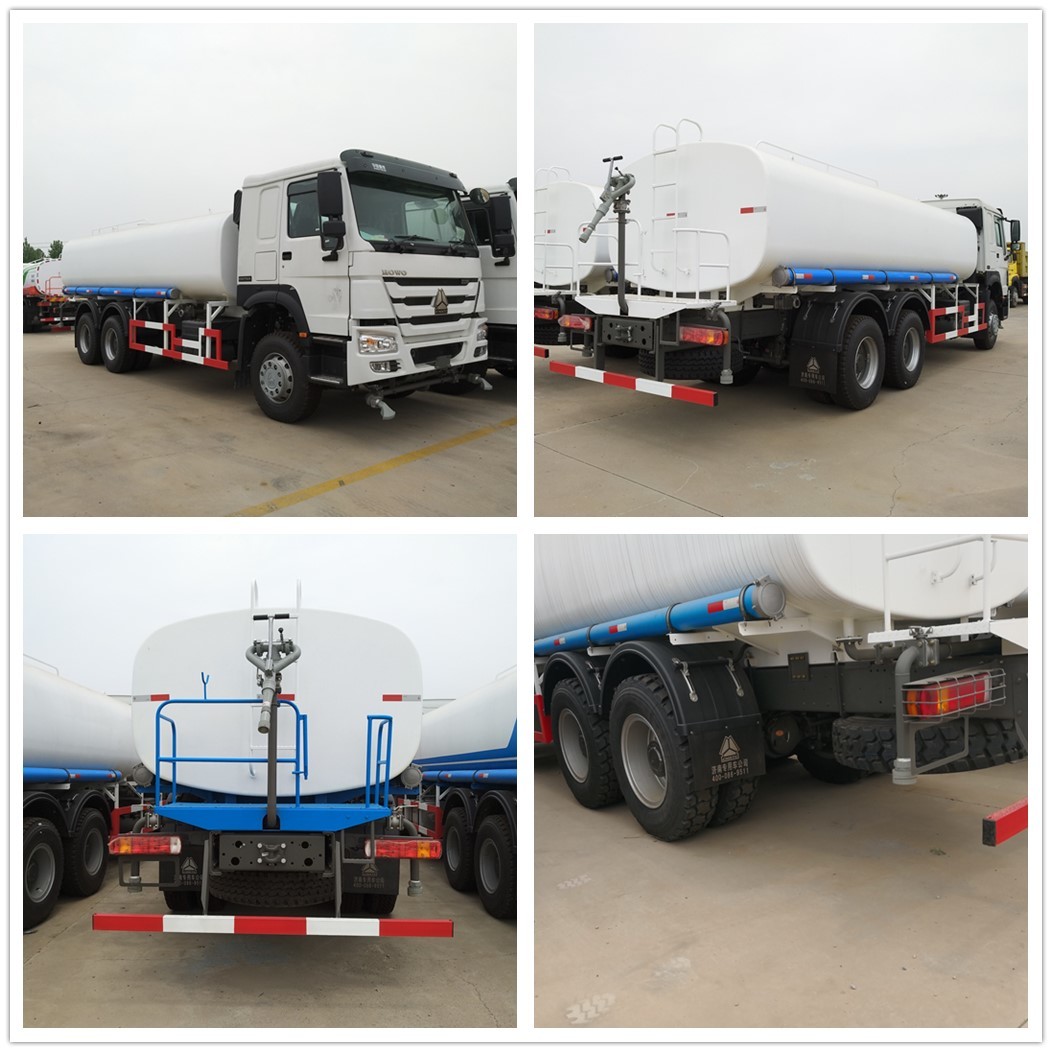

336HP Sinotruck Howo 20m3 Used Water Tank Truck Images
|
