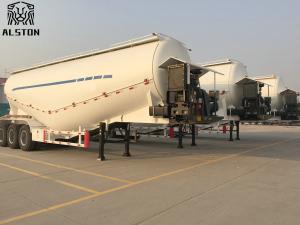

3 Axle 32 50 60 Cbm Flour Powder Tank Bulk Cement Tanker Trailer
Bulk Cement Trailer Features:
The dry bulk cement trailer is mainly composed of a chassis and a bodywork part, which can be simply
divided into five parts: chassis system, transmission system, tanker body, pipeline system and accessories.
Chassis system: the main component of the dry bulk cement trailers , the transportation function of the dry
bulk cement trailers is realized by the chassis.
Cement tanker body: mainly composed of head, tank, manhole cover and fluidization device. It is the load-bearing
part of the cargo. The horizontal type of the tank can be generally divided into three cabins and double cabins,
and the vertical type is generally a multi-cabin structure. The material of bulk cement tanker is generally carbon
steel, stainless steel, aluminum alloy, etc. Different transport media require different materials and internal treatment
for the tanker. The excellent design and workmanship of the tanker also determines the discharge speed
and the residual material rate.
BULK CEMENT TRAILER SPECIFICATIONS
| Trailer Model | 40M3 BULK CEMENT SEMI TRAILER | | Overall Dimension (Lx W x H)(mm) | 10700x2500x3950mm | | Function | transport bulk powder | | Loading Weight( KG) | 54000 | | Thickness(mm) | Tank body: Q235 5mm carbon steel End plate: Q235 5mm carbon steel | | Air compressor | 12m3/minute Bohai brand | | Engine | Diesel engine: Weichai Tianhe 4102 | | Compartment | 1 inner fluidized bed: air bag | | Axle | 3x13Ton, ZY brand | | Suspension system | Mechanical leaf spring suspension | | Leaf spring | 90(W)mm*13(Thick)mm*10 Layer | | Manhole cover | 500mm manhole cover. 2 sets | | Discharge valve | 4〞butterfly valve | | Discharge pipe | 4〞 | | Landing Gear | 28Ton, double speed,Yahua brand | | Tire | 12R22.5, Taitong brand 12units | | Traction Pin | 2” or 3.5” bolts in, changable | | Spare Wheel Bracket | 2 pieces | | Tool Box | 1 Standard | | Side guard | According to customer’s requirement | | Brake system | Dual Line braking system | | Emergency valve | Standard or WABCO | | Brake air chamber | Six big double air chambers | | Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) | | | Tail lamp with turn signal, brake light & reflector, side lamp etc. | | | One set 6-core standard Cable. | | Painting | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. | | Packing | Polish with wax before shipping | |
